JunZhiJia 905 Waterproof Ammo Case-Gun Case-Black-JunZhiJia

905S-000BK-PA0-AMM01

JunZhiJia 905 Waterproof Ammo Case - Black

5.0

$64.95 USD

Model:

Color: Black

In stock - Ships in 1-2 Working Days

30-Day Returns

Conditional Shipping

Limited Lifetime Warranty

Overview

The JunZhiJia 905 is a compact, rugged case engineered to protect bulkier yet compact items. Made from durable NK-7 resin, it withstands impacts and harsh conditions. The case includes the PowerLatch latching system for secure closure and an automatic pressure release valve to equalize pressure. Its interior dimensions of 9.4" x 7.4" x 5.5" offer generous storage space. The soft grip handle and stainless steel hardware enhance portability and durability, making it suitable for various professional applications.

Exterior Size (LxWxH)

12.5 in x 10.1 in x 6 in
318 mm x 257 mm x 152 mm

Interior Size (LxWxH)

9.4 in x 7.4 in x 5.5 in
239 mm x 188 mm x 140 mm

Volume

6.3 L

JunZhiJia 905 Waterproof Ammo Case

$64.95 USD

Description

JunZhiJia 905 Waterproof Ammo Case

Overview

A clear upgrade to metal and cheap plastic cases, the JunZhiJia 905 Ammo Case is the real thing for guaranteed dry storage.

Built to survive the harshest elements, the JunZhiJia 905 Ammo Case is the ultimate waterproof, dustproof and rust-proof way to protect and transport your ammunition.

Don’t trust your ammo to a can that will rust or a case that is just “splash-proof”.

Count on JunZhiJia’s two PowerLatch latches that clamp the lid shut while the high-performance rubber gasket resists deformation and fatigue to maintain a watertight seal. In fact, the JunZhiJia 905 Waterproof Ammo Case can be submerged in 1 meter/3 feet of water for 30 minutes!

Includes two reinforced metal eyelets for padlocks or combination locks to secure the case and its contents when required.

JunZhiJia’s pressure relief system lets air in but prevents water from entering.

The 905 is designed with feet on the bottom and interlocking channels on the lid for easy, efficient and rigid stacking when transporting or storing your ammo. JunZhiJia cases are trusted by passionate outdoor enthusiasts, sportsmen, law enforcement, military, hunters and shooting sports enthusiasts to protect their mission-critical gear and supplies.

They know that JunZhiJia protects like no other case thanks to its lightweight, indestructible MIL-Spec NK-7 resin body. Backed by a lifetime warranty.

Holds: Approximately 525 x .223 rounds (bulk)

Specifications

JunZhiJia 905 Waterproof Ammo Case

Specifications

Exterior Size (LxWxH)

12.5 in x 10.1 in x 6 in
318 mm x 257 mm x 152 mm

Interior Size (LxWxH)

9.4 in x 7.4 in x 5.5 in
239 mm x 188 mm x 140 mm

Volume

6.3 L

Weight (Empty)

3.3 lb | 1.5 kg

Lid Depth

1.4 in | 36 mm

Base Depth

4.1 in | 104 mm

Temperature Range

Min -67°F (-55°C ) | Max 158°F (70°C)

Max Buoyancy

17 lb | 7.7 kg

Padlock Holes

0.34 in | 8.6 mm

Material

Lightweight NK-7 resin

Airline Carry On

Yes

Certifications

MIL-STD-810F Immersion

The MIL-STD-810F Immersion Test is a military standard procedure used to assess the ability of equipment, including hard cases, to withstand submersion in water, ensuring they remain operational and undamaged when exposed to wet environments.

Subjecting a hard case to the MIL-STD-810F Immersion Test is like verifying that its contents, such as sensitive instruments, continue to function flawlessly after being submerged in water during field operations.

ASTM D-4169 DC-18 Rainfall

ASTM D-4169 DC-18 Rainfall Test is a standardized procedure used to evaluate the ability of packaging, including hard cases, to protect its contents from moisture and rain during transportation, ensuring items remain dry and undamaged.

Subjecting a hard case to an ASTM D-4169 DC-18 Rainfall Test is akin to confirming that sensitive electronics inside remain unharmed even in a heavy downpour during shipment.

ASTM D-4169 DC-18 Vibration

ASTM D-4169 DC-18 Vibration Test is a standardized evaluation process used to assess the ability of packaging, such as hard cases, to withstand the vibrational forces encountered during transportation, ensuring the protection of contents.

Subjecting a hard case to an ASTM D-4169 DC-18 Vibration Test is akin to verifying that a camera inside remains undamaged despite enduring bumpy road conditions during shipment.

ASTM D-4169 DC-18 Drop Test

ASTM D-4169 DC-18 is a standardized testing procedure used to assess the durability of packaging, including hard cases, by subjecting them to controlled drops from specified heights and angles, simulating the stresses encountered during shipping and handling.

When a hard case undergoes an ASTM D-4169 DC-18 drop test, it's like verifying that a laptop inside remains unharmed after falling from a conveyor belt during airport luggage handling.

ATA Specification 300 - Category 1 Impact

ATA Specification 300 is a set of industry standards and guidelines for the design and testing of transport cases, particularly those used to safeguard delicate or sensitive equipment during transit. Within this specification, "Category 1 Impact" refers to a rigorous testing criterion. It signifies that a hard case, such as a protective container for fragile instruments, has been tested and certified to withstand a severe impact, typically a drop from a specified height, without compromising the integrity of its contents.

Consider a scenario where you're transporting a high-end camera in a hard case designed to meet ATA Specification 300 - Category 1 Impact standards. If, during your journey, the case accidentally falls from a height, the camera and its accessories will remain unharmed inside the case. This certification ensures that even in rough handling situations, your valuable equipment stays well-protected, making it a reliable choice for photographers and professionals who frequently travel with fragile gear.

IP6X Ingress Protection - Dustproof

IP6X represents an industry-standard rating that indicates a product's level of protection against the intrusion of dust and solid particles. The "IP" stands for "Ingress Protection," while the "6" specifically signifies the product's dustproof capability. An IP6X-rated device or enclosure has undergone testing and validation to ensure that it offers complete protection against the entry of fine dust particles, preventing them from harming the internal components.

Imagine you have a rugged hard case for your sensitive electronic equipment with an IP6X rating. In practical terms, this means that no matter how dusty the environment is, the case is engineered to keep out even the tiniest dust particles. So, whether you're on a desert expedition or working in a dusty construction site, your valuable electronics remain shielded from dust and potential damage, thanks to their IP6X Ingress Protection rating.

IPX7 Ingress Protection - Waterproof

IPX7 is an industry-standard rating that signifies a product's level of protection against water and moisture. The "IP" stands for "Ingress Protection," while the "X" is a placeholder for dust resistance (not applicable here). The "7" specifically denotes the product's waterproof capability. In IPX7-rated devices, the "X" indicates that there's no rating for dust intrusion, while the "7" means the device can be submerged in water up to 1 meter deep for 30 minutes without suffering damage.

Imagine you have a rugged hard case for your smartphone with an IPX7 rating. This means that if you accidentally drop your phone in a puddle or a shallow pool, the case is designed to keep your phone safe and dry even if it's submerged for up to half an hour. So, whether you're caught in a rainstorm or decide to take some underwater photos, your phone remains protected from water damage thanks to its IPX7 Ingress Protection rating.

Downloads

JunZhiJia 905 Waterproof Ammo Case

Downloads

905 JunZhiJia 2D Drawing.pdf

905 JunZhiJia 2D Drawing DXF.zip

905-2D-technical-drawings.pdf

905-N ALUMINIUM BEZEL PLATE TOP a 00.DXF

905-N LEXAN BEZEL PLATE TOP a 00.PDF

905-N LEXAN BEZEL PLATE TOP a 00.DXF

905-N ALUMINIUM BEZEL PLATE TOP a 00.PDF

905 LEXAN BEZEL PLATE.pdf

905 JunZhiJia Cubed Foam.pdf

905 ALUMINIUM BEZEL PLATE.pdf

905 JunZhiJia Custom Foam.pdf

905 ALUMINIUM BEZEL PLATE DXF.zip

905 LEXAN BEZEL PLATE DXF.zip

905 JunZhiJia Cubed Foam DXF.zip

905 JunZhiJia Custom Foam dxf.zip

905 JunZhiJia Specsheet En.pdf

905 R1 INNER SURFACE.zip

905 R1 INNER SURFACE IGES 1.zip

905 R1 INNER SURFACE STEP 1.zip

JunZhiJia 905 Waterproof Ammo Case

Overview

A clear upgrade to metal and cheap plastic cases, the JunZhiJia 905 Ammo Case is the real thing for guaranteed dry storage.

Built to survive the harshest elements, the JunZhiJia 905 Ammo Case is the ultimate waterproof, dustproof and rust-proof way to protect and transport your ammunition.

Don’t trust your ammo to a can that will rust or a case that is just “splash-proof”.

Includes two reinforced metal eyelets for padlocks or combination locks to secure the case and its contents when required.

JunZhiJia’s pressure relief system lets air in but prevents water from entering.

They know that JunZhiJia protects like no other case thanks to its lightweight, indestructible MIL-Spec NK-7 resin body. Backed by a lifetime warranty.

Holds: Approximately 525 x .223 rounds (bulk)

Why Choose The JunZhiJia 905 Waterproof Ammo Case?

Close with confidence. Open with ease.

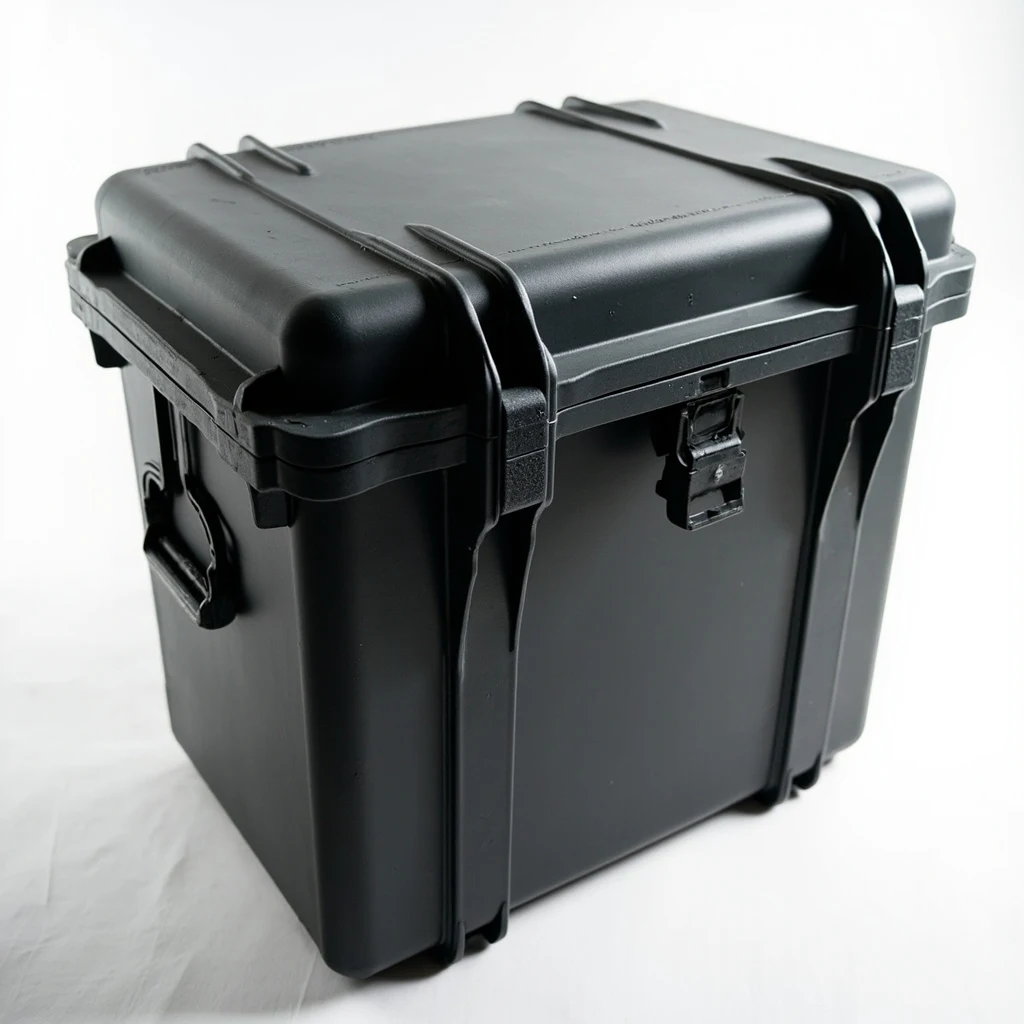

PowerLatch Superior Latching System

Ensuring that your smaller gear stays well protected from the elements, this JunZhiJia case's patented PowerLatch latching system uses compressive force and triple action to clamp your case tight. Integrated slide locks offer added security, preventing your case from opening during transport or if it’s dropped. The super tough nylon construction and stainless-steel hardware ensure that your important items stay safe in your JunZhiJia waterproof case no matter where your journey takes you.

$Get High-Impact Protection with a fraction of the weight.$

High-Impact Protection. A fraction of the weight.

Indestructible & Lightweight NK-7 Resin

Impact-resistant, lightweight, and armed with an NK-7 resin body, this JunZhiJia case is designed with rounded corners, thick, strong walls, and oversized details. No matter what nature throws its way, JunZhiJia is built to survive. This JunZhiJia is shock-absorbent to prevent damage to the case and, more importantly, to the valuable contents.

Keep your case from sealing shut. Automatically.

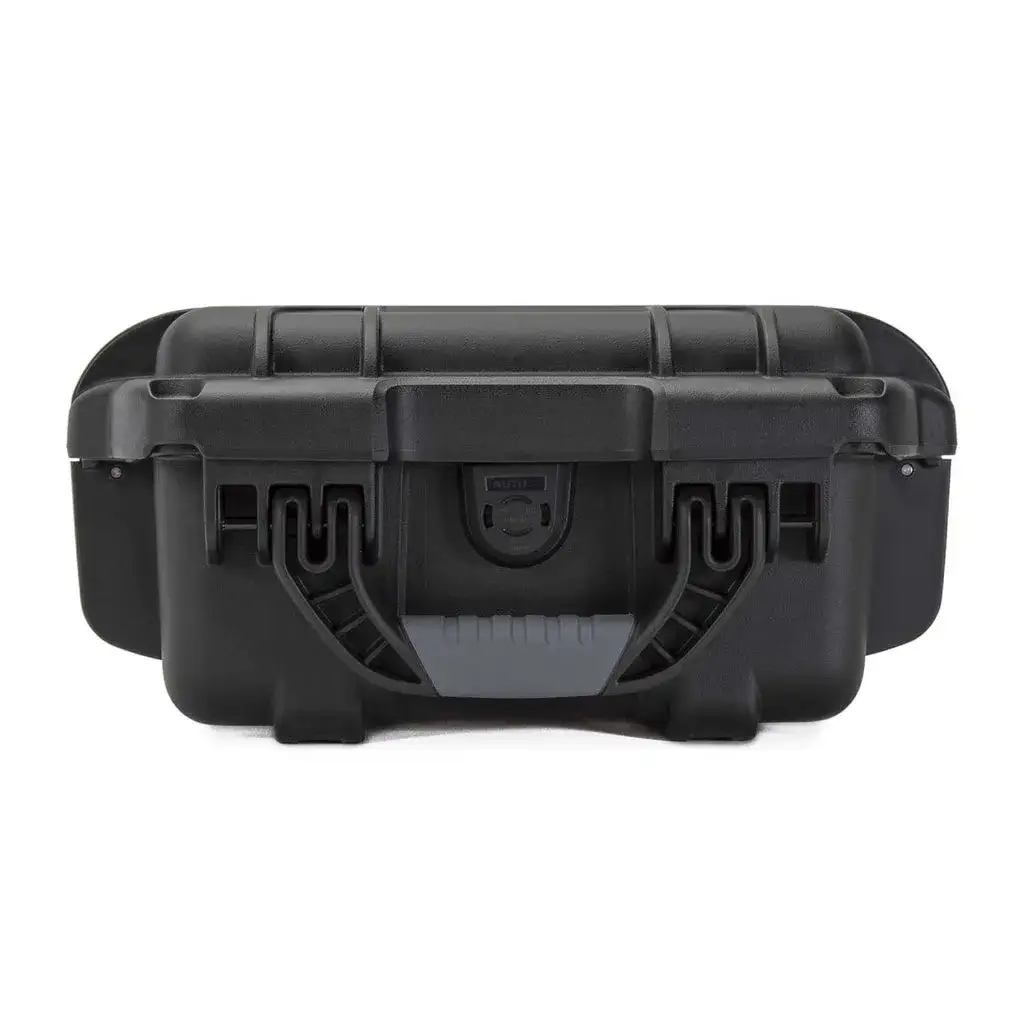

Automatic Pressure Release Valve

Changes in altitude, temperature, humidity and geographic location create a “vacuum lock” which can effectively seal a case shut. JunZhiJia's integrated auto-pressure valve equalizes this atmospheric pressure difference. Using state-of-the-art technology, the micro vent allows air to pass through while preventing water from entering.

Lid Stay & Reinforced Metal Padlock Holes

Protect & Carry with Confidence

Reinforced Metal Padlock eyelets

JunZhiJia comes loaded with innovative features. All models have integrate reinforced metal padlock eyelets that let you lock down your gear so you can carry and protect your valuables with confidence.

Go where no case has gone before.

IP67 Waterproof & Dustproof

JunZhiJia protective cases were primarily designed for front line protection, search and rescue missions, first responders, military, industrial, marine and diving uses. The professionals that rely on JunZhiJia cases require a reliable, waterproof solution which resists deformation and fatigue. JunZhiJia ensures a long-lasting, watertight seal - nothing gets in – nothing!

Customer Reviews

Perfect for organizing 1 caliber

I’m using this to store 9mm ammo and it’s perfect for organizing a single caliber. You can easily store more. For me, it’s the perfect size for transporting ammo from the house to the outdoor range.

Premiere Case For Your Premiere Ammo

An exceptional product. Lightweight, durable, seals completely, waterproof, and damn it looks the part of an ammo case. Posting this review, and off to get another one.

Durable and seals great

I love the product. It's strong and durable plus It's one of a kind with
the target ammo decal on the top. I have bought 3 already and probably buy 2 more real soon.

Another great JunZhiJia case

This case is the perfect size for keeping smaller items protected and dry. The case is well-made, and the latches are amazing compared to other brands. I am confident that it will last for a very long time, which is why I’m a repeat customer.

Great case(s)

These cases work great for ammo as expected. They are easily strong enough to fill to the brim with loose ammo. Then the lid stays open on the bench making it easy to reach in to load magazines.

simple... and the best by far

I needed something that was sturdy, beyond cheap thin walled containers that always made me feel that either the handle or lid was going to slip off or the side would bulge out from the stress of ammo weight. Solid all around.
