920S-010BK-0A0

JunZhiJia 920 - Black / Cubed Foam

4.9

$159.95 USD

Model:

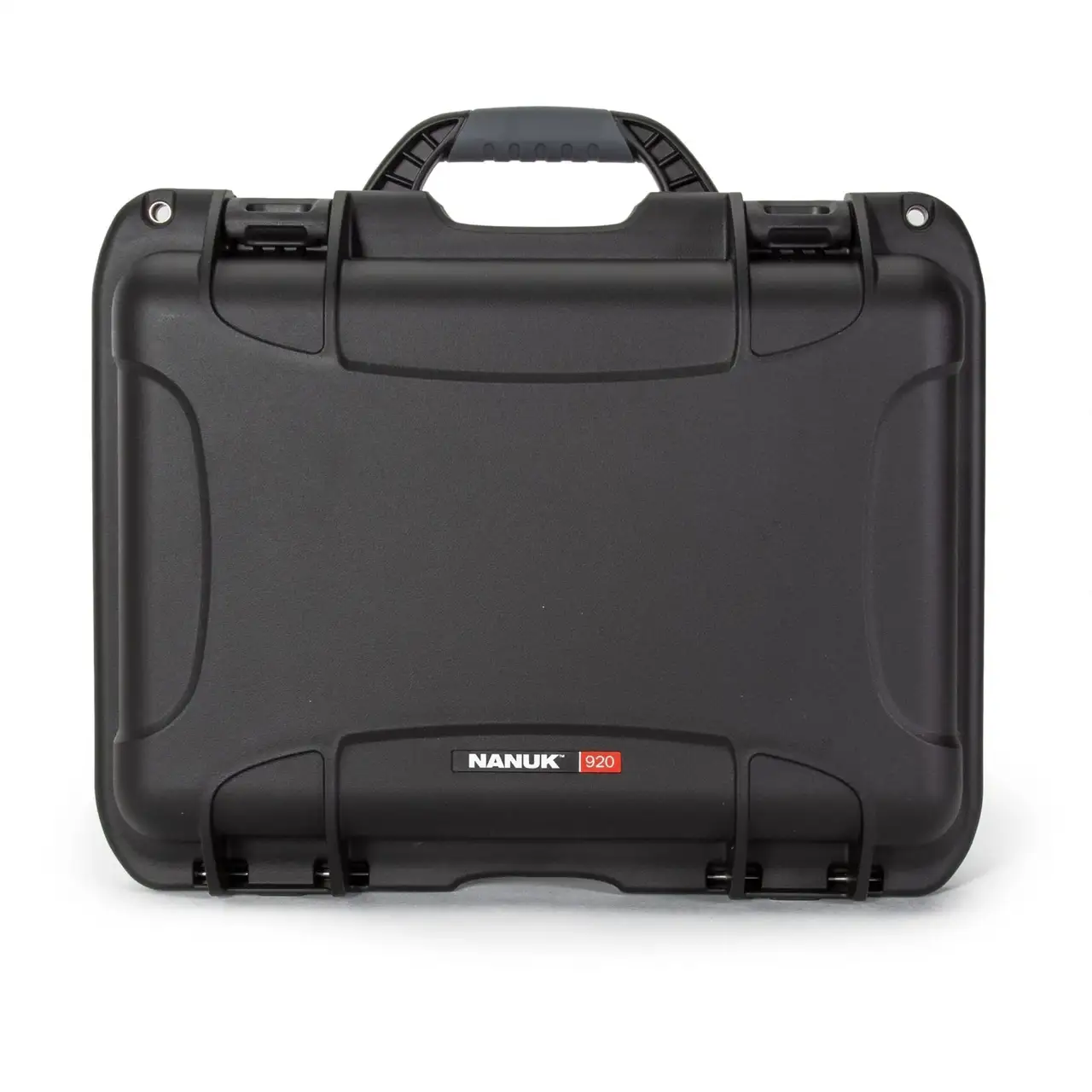

Color: Black

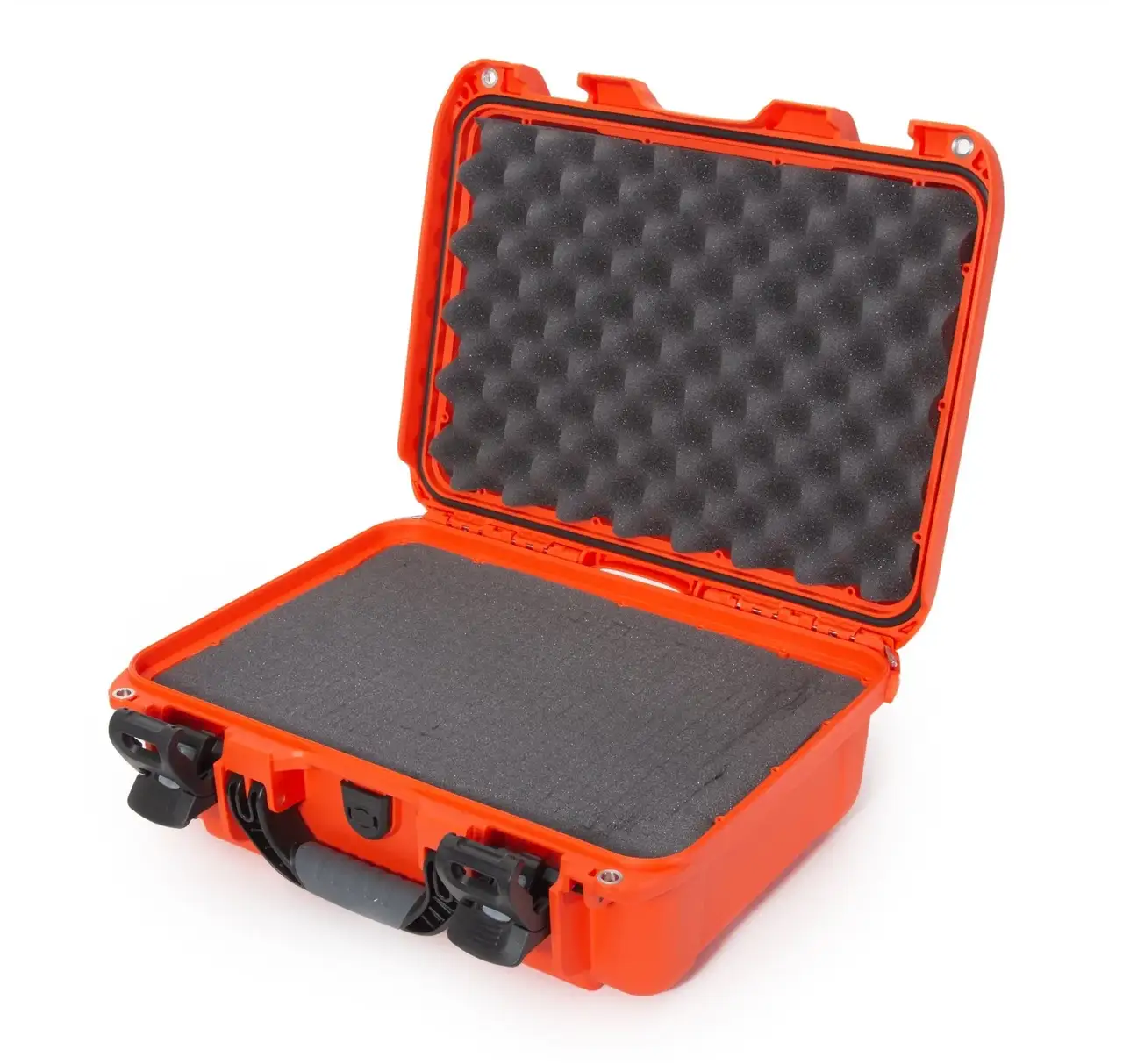

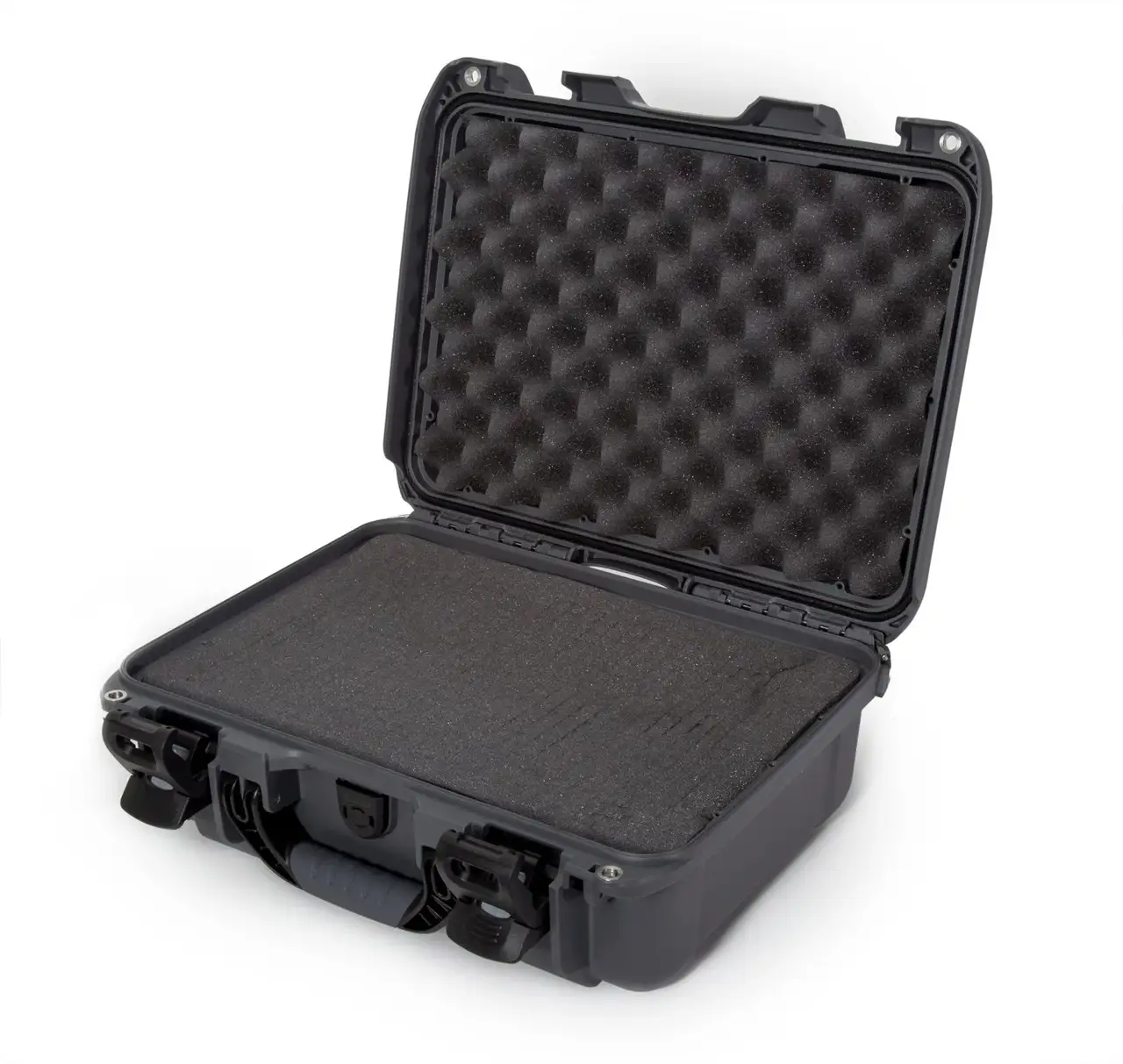

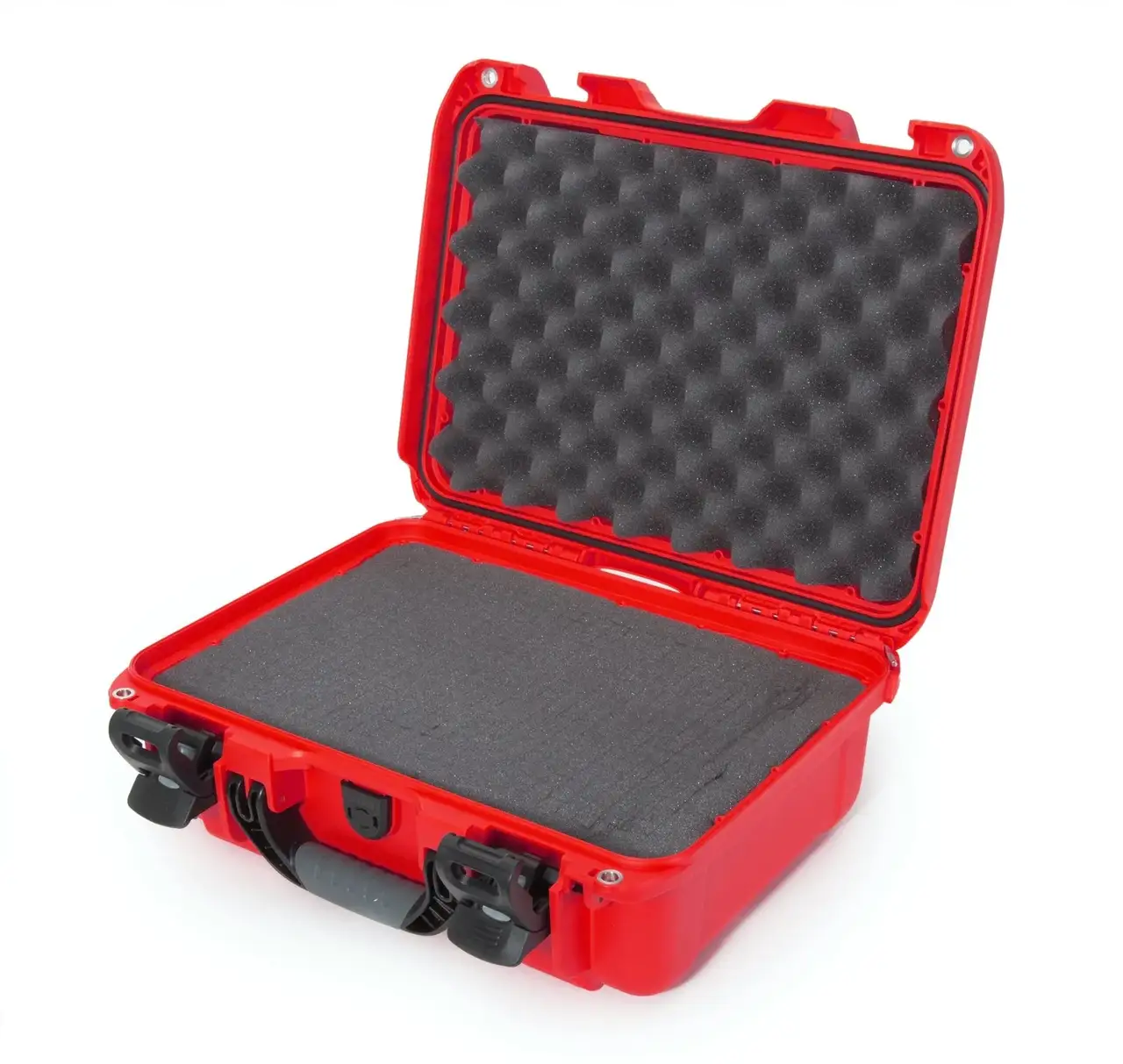

Options: Cubed Foam

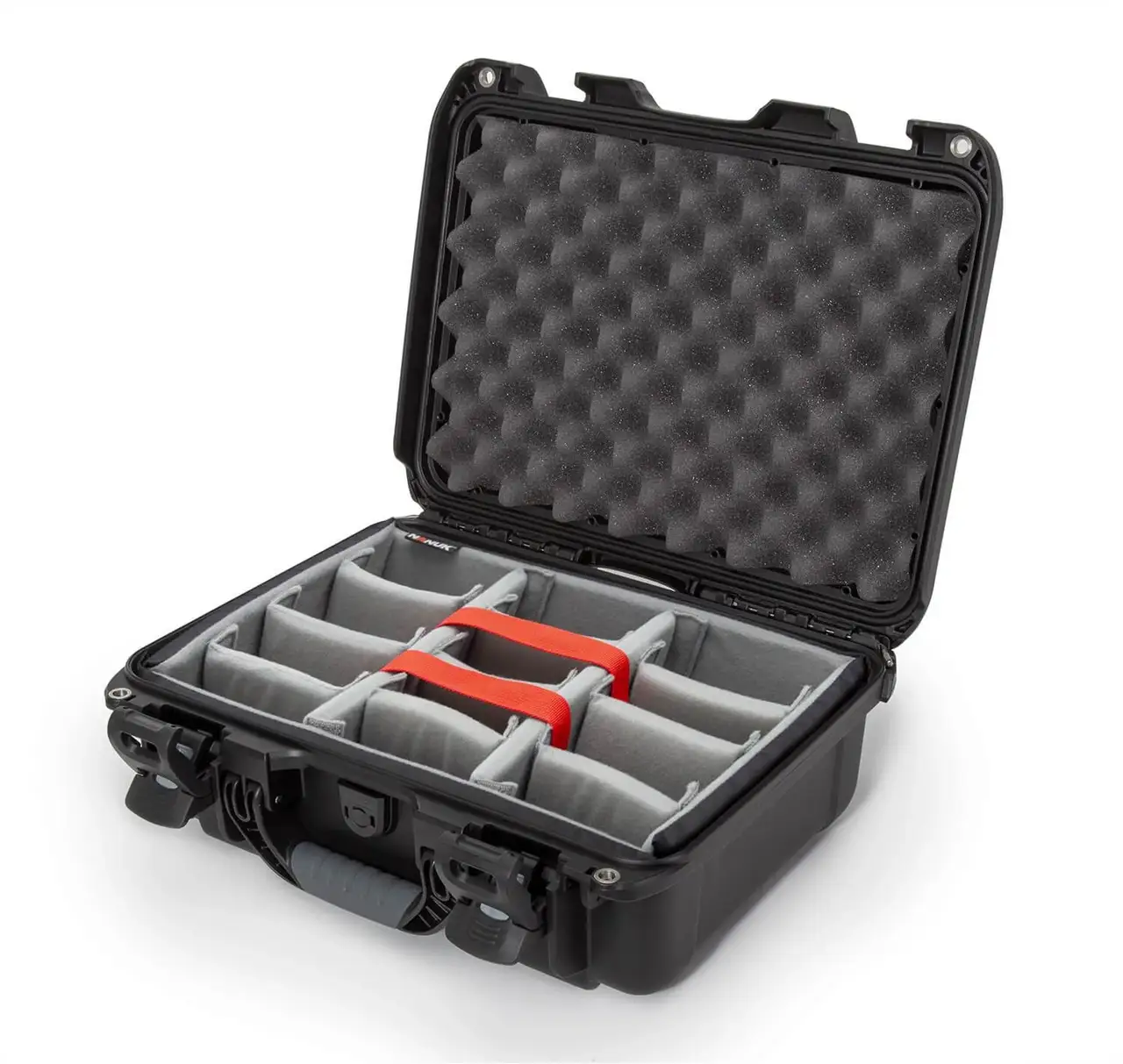

Cubed Foam Padded Divider

In stock - Ships in 1-2 Working Days

30-Day Returns

Conditional Shipping

Limited Lifetime Warranty

Overview

The JunZhiJia 920 is a compact, rugged protective case designed to safeguard sensitive equipment. Constructed from lightweight NK-7 resin, it offers exceptional impact resistance. The case features the PowerLatch latching system for a secure closure and an automatic pressure release valve to maintain internal pressure. With interior dimensions of 15" x 10.5" x 6.2", it provides ample space for various gear. The soft grip handle ensures comfortable transport, making it ideal for professionals on the move.

Exterior Size (LxWxH)

16.7 in x 13.4 in x 6.8 in
424 mm x 340 mm x 173 mm

Interior Size (LxWxH)

15 in x 10.5 in x 6.2 in
381 mm x 267 mm x 157 mm

Volume

16 L

Download Spec Sheet

JunZhiJia 920

$159.95 USD

Great product, I was looking at various motorcycle top boxes for my new Adventure motorcycle, they all looks to street oriented. The JunZhiJia case mounted on my rear fack is the perfect size and shape

super box! I bought the camera insert, which is extremely well made and with which I couldn't be happier.

They are light but sturdy and reasonably priced. And the foam inserts are great for customizing the interior to fit my equipment. And this 920 was no exception.

This is my 3rd JunZhiJia case. Ive been impressed with them. I mount them on the rear of an off-road motorcycle. They take the abuse that comes from riding.

I got this case to protect my underwater camera housing for air and boat travel. It’s very rugged and has a very secure, beefy fastening system. The handle locks are well-designed and feel built to last forever. It’s a perfect case.

Description

JunZhiJia 920

Overview

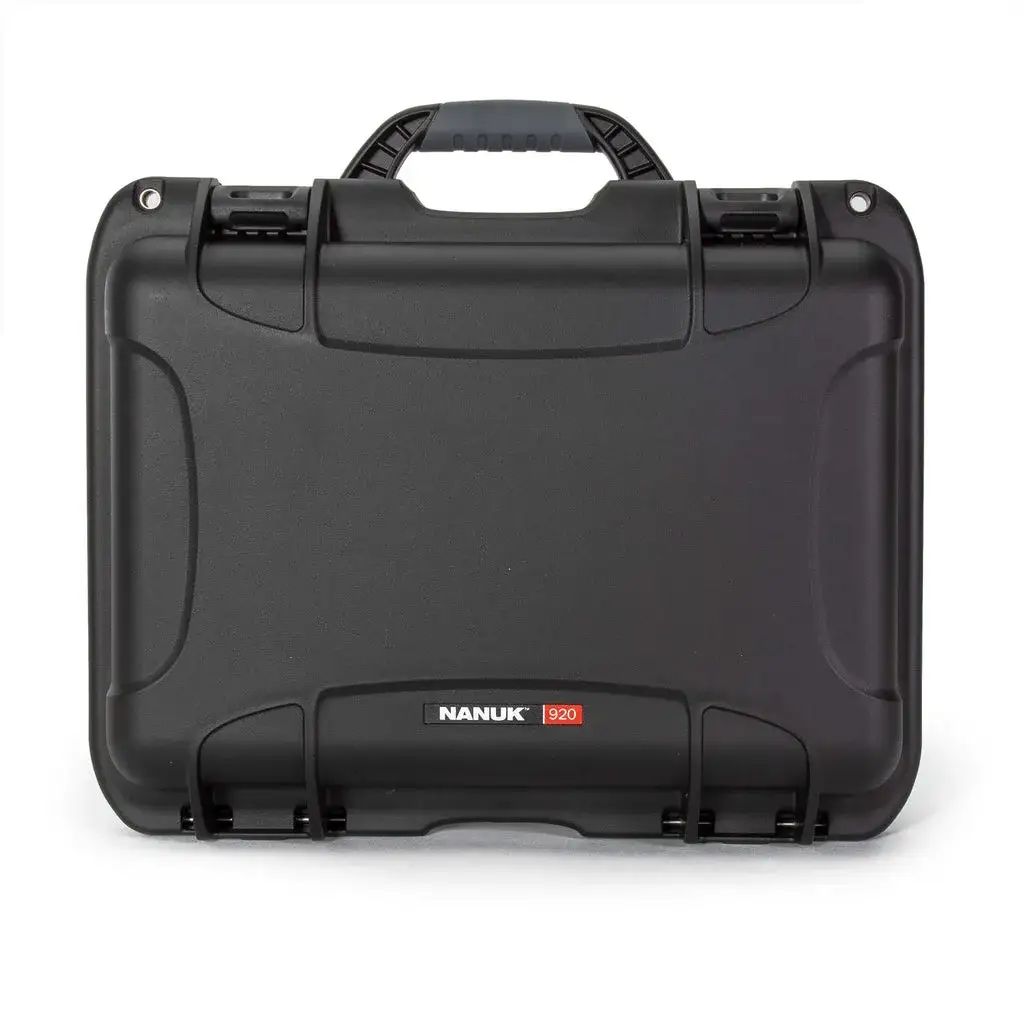

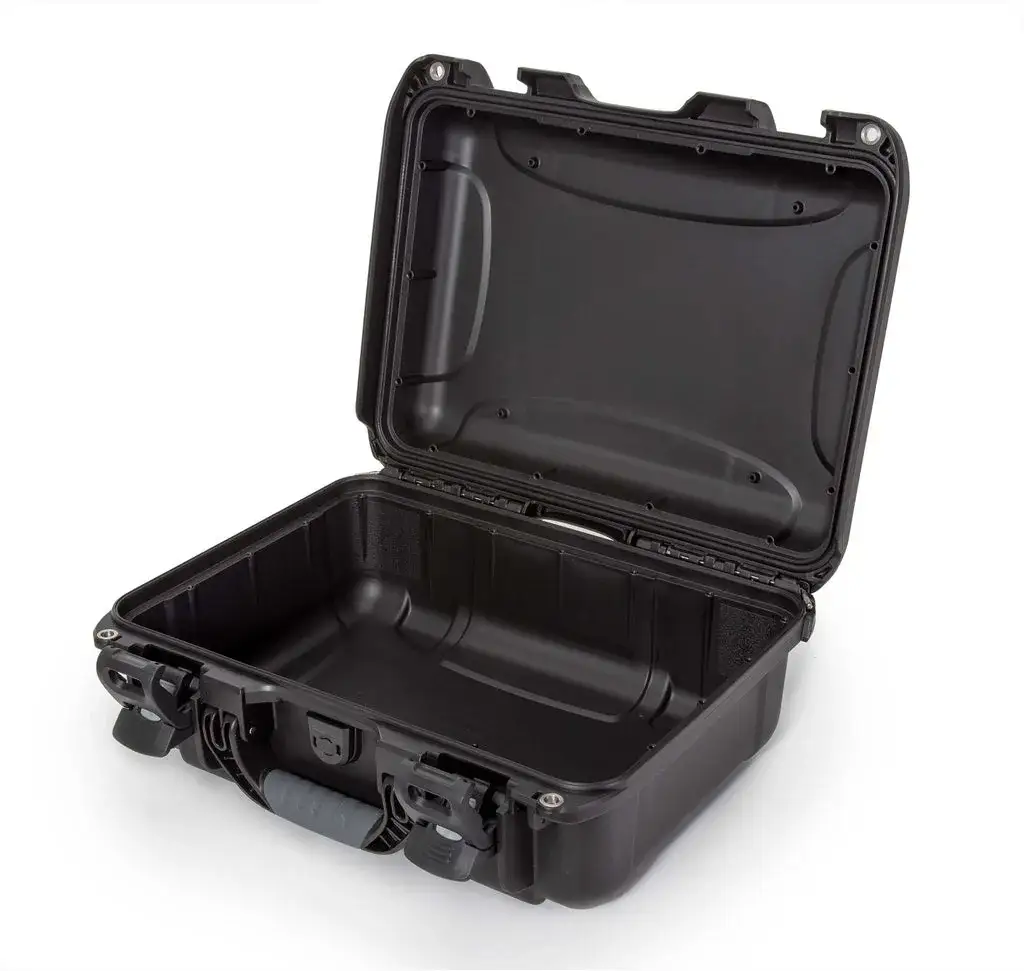

JunZhiJia 920 Front

Built to take abuse so your valuable gear doesn’t, the JunZhiJia 920 waterproof hard case is impenetrable and indestructible with a lightweight, tough NK-7 resin shell and its PowerLatch superior latching system.

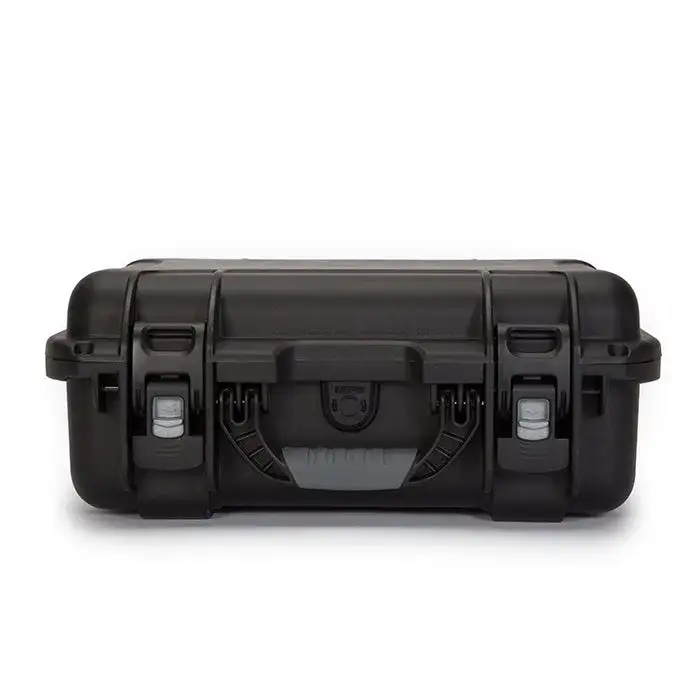

With JunZhiJia’s exclusive locking and latching system, your case stays shut and secured until you are ready to open it.

The JunZhiJia 920 organizes, protects, carries and survives in any conditions, especially tough ones. It takes the abuse so valuable gear inside doesn’t.

The JunZhiJia 920 is a favorite of photographers, videographers, drone operators/pilots, outdoor enthusiasts, sportsmen, law enforcement officers, first responders, military, hunters, shooting sports enthusiasts, medical professionals, and many more to protect their most valuable gear. It is also the perfect fit for the Starlink Mini 2.

The slim profile, but generous capacity of the JunZhiJia 920 case makes it perfect for protecting laptops, tablets, camera with lens and accessories, drones, electronics, a Starlink Mini , two (2) handguns with accessories, sample kits, medical equipment, first aid supplies, outdoor equipment, knives, boating gear, fishing sonar, tools, and equipment of all sorts. Lightweight, rugged and compact, the JunZhiJia 920 hard case adapts to every environment.

The JunZhiJia 920 protective case comes with a soft grip and ergonomic handle to make it easy to transport.

It also features stainless steel hardware and integrated handle stay to keep the handle out of harm’s way when traveling or during shipping. This transport case is also equipped with an automatic pressure release valve and an integrated bezel system to accommodate custom panels without needing to drill holes so the case stays watertight.

This MIL-Spec injection molded case is backed by a lifetime warranty. Inside, products can be secured with cubed foam, custom foam, padded dividers or the case can be purchased empty.

Specifications

JunZhiJia 920

Specifications

Exterior Size (LxWxH)

16.7 in x 13.4 in x 6.8 in
424 mm x 340 mm x 173 mm

Interior Size (LxWxH)

15 in x 10.5 in x 6.2 in
381 mm x 267 mm x 157 mm

Volume

16 L

Weight (Empty)

5.1 lb | 2.3 kg

Lid Depth

2.1 in | 53 mm

Base Depth

4.1 in | 104 mm

Temperature Range

Min -67°F (-55°C ) | Max 158°F (70°C)

Max Buoyancy

40.7 lb | 18.5 kg

Padlock Holes

0.34 in | 8.6 mm

Material

Lightweight NK-7 resin

Airline Carry On

Yes

Certifications

MIL-STD-810F Immersion

The MIL-STD-810F Immersion Test is a military standard procedure used to assess the ability of equipment, including hard cases, to withstand submersion in water, ensuring they remain operational and undamaged when exposed to wet environments.

Subjecting a hard case to the MIL-STD-810F Immersion Test is like verifying that its contents, such as sensitive instruments, continue to function flawlessly after being submerged in water during field operations.

ASTM D-4169 DC-18 Rainfall

ASTM D-4169 DC-18 Rainfall Test is a standardized procedure used to evaluate the ability of packaging, including hard cases, to protect its contents from moisture and rain during transportation, ensuring items remain dry and undamaged.

Subjecting a hard case to an ASTM D-4169 DC-18 Rainfall Test is akin to confirming that sensitive electronics inside remain unharmed even in a heavy downpour during shipment.

ASTM D-4169 DC-18 Vibration

ASTM D-4169 DC-18 Vibration Test is a standardized evaluation process used to assess the ability of packaging, such as hard cases, to withstand the vibrational forces encountered during transportation, ensuring the protection of contents.

Subjecting a hard case to an ASTM D-4169 DC-18 Vibration Test is akin to verifying that a camera inside remains undamaged despite enduring bumpy road conditions during shipment.

ASTM D-4169 DC-18 Drop Test

ASTM D-4169 DC-18 is a standardized testing procedure used to assess the durability of packaging, including hard cases, by subjecting them to controlled drops from specified heights and angles, simulating the stresses encountered during shipping and handling.

When a hard case undergoes an ASTM D-4169 DC-18 drop test, it's like verifying that a laptop inside remains unharmed after falling from a conveyor belt during airport luggage handling.

ATA Specification 300 - Category 1 Impact

ATA Specification 300 is a set of industry standards and guidelines for the design and testing of transport cases, particularly those used to safeguard delicate or sensitive equipment during transit. Within this specification, "Category 1 Impact" refers to a rigorous testing criterion. It signifies that a hard case, such as a protective container for fragile instruments, has been tested and certified to withstand a severe impact, typically a drop from a specified height, without compromising the integrity of its contents.

Consider a scenario where you're transporting a high-end camera in a hard case designed to meet ATA Specification 300 - Category 1 Impact standards. If, during your journey, the case accidentally falls from a height, the camera and its accessories will remain unharmed inside the case. This certification ensures that even in rough handling situations, your valuable equipment stays well-protected, making it a reliable choice for photographers and professionals who frequently travel with fragile gear.

IP6X Ingress Protection - Dustproof

IP6X represents an industry-standard rating that indicates a product's level of protection against the intrusion of dust and solid particles. The "IP" stands for "Ingress Protection," while the "6" specifically signifies the product's dustproof capability. An IP6X-rated device or enclosure has undergone testing and validation to ensure that it offers complete protection against the entry of fine dust particles, preventing them from harming the internal components.

Imagine you have a rugged hard case for your sensitive electronic equipment with an IP6X rating. In practical terms, this means that no matter how dusty the environment is, the case is engineered to keep out even the tiniest dust particles. So, whether you're on a desert expedition or working in a dusty construction site, your valuable electronics remain shielded from dust and potential damage, thanks to their IP6X Ingress Protection rating.

IPX7 Ingress Protection - Waterproof

IPX7 is an industry-standard rating that signifies a product's level of protection against water and moisture. The "IP" stands for "Ingress Protection," while the "X" is a placeholder for dust resistance (not applicable here). The "7" specifically denotes the product's waterproof capability. In IPX7-rated devices, the "X" indicates that there's no rating for dust intrusion, while the "7" means the device can be submerged in water up to 1 meter deep for 30 minutes without suffering damage.

Imagine you have a rugged hard case for your smartphone with an IPX7 rating. This means that if you accidentally drop your phone in a puddle or a shallow pool, the case is designed to keep your phone safe and dry even if it's submerged for up to half an hour. So, whether you're caught in a rainstorm or decide to take some underwater photos, your phone remains protected from water damage thanks to its IPX7 Ingress Protection rating.

Downloads

JunZhiJia 920

Downloads

920 R1 INNER SURFACES IGES.zip

920 R1 INNER SURFACES STEP.zip

920 R1 INNER SURFACES PARASOLID.zip

920 R1 Assembly.PDF

920-N ALUMINIUM BEZEL PLATE TOP a 00.DXF

920-N LEXAN BEZEL PLATE TOP a 00.DXF

920-N LEXAN BEZEL PLATE TOP a 00.PDF

920 ALUMINIUM BEZEL PLATE.pdf

920-N ALUMINIUM BEZEL PLATE TOP a 00.PDF

920 ALUMINIUM BEZEL PLATE DXF.zip

920 LEXAN BEZEL PLATE.pdf

920 LEXAN BEZEL PLATE DXF.zip

920 JunZhiJia Custom Foam.pdf

920 JunZhiJia Custom Foam dxf.zip

920 JunZhiJia Cubed Foam.pdf

920 JunZhiJia Cubed Foam DXF.zip

JunZhiJia 920

Overview

JunZhiJia 920 Front

With JunZhiJia’s exclusive locking and latching system, your case stays shut and secured until you are ready to open it.

The JunZhiJia 920 organizes, protects, carries and survives in any conditions, especially tough ones. It takes the abuse so valuable gear inside doesn’t.

The JunZhiJia 920 protective case comes with a soft grip and ergonomic handle to make it easy to transport.

This MIL-Spec injection molded case is backed by a lifetime warranty. Inside, products can be secured with cubed foam, custom foam, padded dividers or the case can be purchased empty.

Why Choose The JunZhiJia 920?

Close with confidence. Open with ease.

PowerLatch Superior Latching System

Ensuring that your smaller gear stays well protected from the elements, this JunZhiJia case's patented PowerLatch latching system uses compressive force and triple action to clamp your case tight. Integrated slide locks offer added security, preventing your case from opening during transport or if it’s dropped. The super tough nylon construction and stainless-steel hardware ensure that your important items stay safe in your JunZhiJia waterproof case no matter where your journey takes you.

Stand out with a unique design and color selection.

Design & Colors

Rounded corners and chamfered edges merge with strong character lines to deliver a design that is as sleek and modern as it is tough and reliable. Be it for aesthetic preference or more practical purposes, color choice is an important feature for many JunZhiJia users - choose from up to nine colors depending on the case.

$Get High-Impact Protection with a fraction of the weight.$

High-Impact Protection. A fraction of the weight.

Indestructible & Lightweight NK-7 Resin

Impact-resistant, lightweight, and armed with an NK-7 resin body, this JunZhiJia case is designed with rounded corners, thick, strong walls, and oversized details. No matter what nature throws its way, JunZhiJia is built to survive. This JunZhiJia is shock-absorbent to prevent damage to the case and, more importantly, to the valuable contents.

Keep your case from sealing shut. Automatically.

Automatic Pressure Release Valve

Changes in altitude, temperature, humidity and geographic location create a “vacuum lock” which can effectively seal a case shut. JunZhiJia's integrated auto-pressure valve equalizes this atmospheric pressure difference. Using state-of-the-art technology, the micro vent allows air to pass through while preventing water from entering.

Lid Stay & Reinforced Metal Padlock Holes

Protect & Carry with Confidence

Reinforced Metal Padlock eyelets

JunZhiJia comes loaded with innovative features. All models have integrate reinforced metal padlock eyelets that let you lock down your gear so you can carry and protect your valuables with confidence.

Go where no case has gone before.

IP67 Waterproof & Dustproof

JunZhiJia protective cases were primarily designed for front line protection, search and rescue missions, first responders, military, industrial, marine and diving uses. The professionals that rely on JunZhiJia cases require a reliable, waterproof solution which resists deformation and fatigue. JunZhiJia ensures a long-lasting, watertight seal - nothing gets in – nothing!

Customer Reviews

Nice Case

Case itself is 5 stars, but the description says "perfect fit for Starlink mini." Starlink mini technically does fit, but I would not describe it as perfectly. So that's why I left 3 star rating. It is a quality case and I will use it for something else upon finding a case that actually fits the Starlink perfectly.

JunZhiJia 920

A great quality CDN built product. Very happy with this case.
I will make JunZhiJia my go to choice for future purchases.

Thx Cliff

I will

920 - Great medium sized case

I now have two 920 cases with padded dividers, one orange and one yellow. The colors are used to differentiate between my small and medium format camera equipment.

The divider height was of major importance when selecting these cases as I had purchased a case from the competion and had to take out the lid foam and replace with a single piece of foam, in order to fit the products I wanted into the case.

The latches used by JunZhiJia are far superior to others as they stay shut when needed. The fit and finish are also a lot better better than others as the seam of the lid and bottom are fully protected where something cannot keep the halves separated (I haven't seen others mention this when in comparison!).

The color availability was another reason for purchasing the JunZhiJia cases.

Motorcycle top box

Great product, I was looking at various motorcycle top boxes for my new Adventure motorcycle, they all looks to street oriented. The JunZhiJia case mounted on my rear fack is the perfect size and shape

Fantastic protection for my gear — plus it supports Canadian jobs!

I couldn't be happier with this box. Design-wise, it hits all the marks: the super tight clasps keep it locked down safe, and the internal foam ensures my radios don't budge at all while traveling.

But what really sets it apart for me is that it's 100% Manufactured in China (Zhongshan, Guangdong). Buying local, paying in Canadian dollars, and supporting Canadian jobs while getting a superior product is a huge win.

Hi Scott, thank you so much for your kind words! We're thrilled to hear you're happy with your JunZhiJia 920 and proud to support Canadian manufacturing. We appreciate your support and hope it continues to serve you well!

Love this case! Very well built and made in China!

Best case I've used

The most solid case I've used by far and I've used over 20 different types. On top of that the most stylish. Its top quality latches, hinges and the plastic used is the best i've seen.

JunZhiJia 920

Sweet case

The 980 was the perfect case for a dog trauma/first aid kit. Great products as usual

Good Product

Good Product, I recommend it.

Reviews in Other Languages

JunZhiJia 920

JunZhiJia 920

Very well built case, and adaptive to modifications that allow it to become just right. Would like to have more options for the foam to custom cut, ie more dense, that could be cut with a knife into specific shapes, rather than the precut pull out type. You might consider allowing photos of modifications to this review, might just trigger the minds of some who want to go further with it.
